Lámparas OSRAM P-VIP y VIP R OSRAM P-VIP 100/1.3 E23
MITSUBISHI VS-60XT20U
S-XT20LA
MITSUBISHI S-PH50LA
MITSUBISHI S-PH50LA S-XL50LA

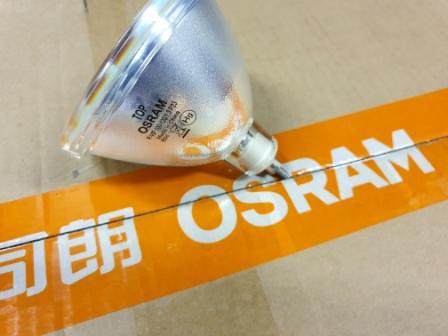

TOP OSRAM VIP R 120/P21 (actual P23) |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IC
Description
A53512000HM P-VIP 165/1.0 E17.6 OSRAM
A63923400HM P-VIP 165/1.0 E17.6A OSRAM
AA3704500HM P-VIP 180/0.8 E17.6 OSRAM
A74738600HM P-VIP 180/0.8 E20.8 FC OSRAM
A74738601HM P-VIP 180/0.8 E20.8 FC OSRAM
A72035A00HM P-VIP 180/0.8 E20.8 HB OSRAM
A59988900HM P-VIP 180/0.8 E20.8 OSRAM
AB3913100HM P-VIP 180/0.8 E20.8A OSRAM
A63866C00HM P-VIP 180/1.0 E20.6A OSRAM
AA3879500HM P-VIP 190/0.8 E20.8 BL OSRAM
AA6942700HM P-VIP 190/0.8 E20.8 HE OSRAM
AA3371200HM P-VIP 190/0.8 E20.8 OSRAM
AA4207200HM P-VIP 190/0.8 E20.8 BL RF OSRAM
AA7082900HM P-VIP 190/0.8 E20.9 HE OSRAM
AA5094700HM P-VIP 190/0.8 E20.9N OSRAM
AB3547100HM P-VIP 195/0.8 E20.7 OSRAM
A59987D00HM P-VIP 200/0.8 E20.8 OSRAM
A59987D01HM P-VIP 200/0.8 E20.8 OSRAM
AA3803201HM P-VIP 200/1.0 CE19.5 OSRAM
A56230700HM P-VIP 200/1.0 CE20.6 OSRAM
A57116A01HM P-VIP 200/1.0 E19.5N OSRAM
A51871D01HM P-VIP 200/1.0 E19A OSRAM
A63867800HM P-VIP 200/1.0 E20.6A OSRAM
A74761100HM P-VIP 200/1.0 E50 OSRAM
AA3907400HM P-VIP 200/1.0 E54 OSRAM
A59162600HM P-VIP 200/1.0 P21.5 OSRAM
A50331E01HM P-VIP 200W/1.0 E20.6N OSRAM
AA5557000HM P-VIP 210-140/0.8 E19.4A OSRAM
AA6426600HM P-VIP 210/0.8 E20.9 HE OSRAM
AA4009000HM P-VIP 210/0.8 E20.9N OSRAM
A72004F00HM P-VIP 220/1.0 E20.8 EDU OSRAM
A72004F01HM P-VIP 220/1.0 E20.8 EDU OSRAM
AA5556800HM P-VIP 230-200/0.8 E19C OSRAM
A70491800HM P-VIP 230/0.8 E19.5N OSRAM
A59809C00HM P-VIP 230/0.8 E20.8 OSRAM
AB3913500HM P-VIP 230/0.8 E20.8A OSRAM
A68095100HM P-VIP 230/0.8 E20.8NE OSRAM
AA3714600HM P-VIP 230/1.0 E50 OSRAM
A73765C00HM P-VIP 240/0.8 E20.8 FC OSRAM
AA3099900HM P-VIP 240/0.8 E20.8 FC OSRAM
AA6540300HM P-VIP 240/0.8 E20.8 HE OSRAM
AA6426700HM P-VIP 240/0.8 E20.9 HE OSRAM
AA7661400HM P-VIP 240/0.8 E20.9N DA OSRAM
AB3237500HM P-VIP 240/0.8 E20.9N Q OSRAM
AA7893200HM P-VIP 240/0.8 E20.9N S OSRAM

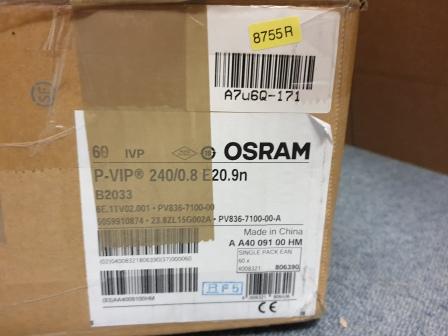

AA4009100HM P-VIP 240/0.8 E20.9N OSRAM
AA5557100HM P-VIP 245-170/0.8 E19.4A OSRAM
AA4121500HM P-VIP 245-300/1.1 E21.7 OSRAM
A41423403HM P-VIP 250/1.0 P22 OSRAM
AA6282700HM P-VIP 250/1.0 P22A AM OSRAM
A53073A01HM P-VIP 250/1.3 CE21.5 OSRAM
A70251100HM P-VIP 250/1.3 CE21.5A OSRAM
A70251101HM P-VIP 250/1.3 CE21.5A EN OSRAM
A54256C01HM P-VIP 250/1.3 E21.8A OSRAM
A38662D02HM P-VIP 250/1.3 E21.8V OSRAM
A47075202HM P-VIP 250/1.3 E21.8V OSRAM
A59177E01HM P-VIP 250/1.3 P22.5 OSRAM
A54619101HM P-VIP 250/1.3 P22A OSRAM
AA7829100HM P-VIP 260/0.9 E20.9 HE OSRAM
A49498102HM P-VIP 260/1.0 E20.6 OSRAM
A60252B00HM P-VIP 260/1.0 E20.6A OSRAM
A63866C01HM P-VIP 260/1.0 E20.6A EN OSRAM
A53534E00HM P-VIP 260/1.0 E20.6D OSRAM
AA4132400HM P-VIP 264-330/1.3 E21.7 OSRAM
A57192C00HM P-VIP 280/0.9 E20.6 OSRAM
AA6540400HM P-VIP 280/0.9 E20.8 HE OSRAM
A70866000HM P-VIP 280/0.9 E20.8 NGR EN OSRAM
A57511700HM P-VIP 280/0.9 E20.8 OSRAM
A73757A00HM P-VIP 280/0.9 E20.8E OSRAM
AA6426800HM P-VIP 280/0.9 E20.9 HE OSRAM
A57193800HM P-VIP 280/0.9 E20.9 OSRAM
A62493700HM P-VIP 280/0.9 E20.9C OSRAM
AB3646300HM P-VIP 280/0.9 E20.9N CUT OSRAM
AA4148900HM P-VIP 280/0.9 E20.9N OSRAM
A72811900HM P-VIP 280/0.9E20 6E GEN2 OSRAM
A73237400HM P-VIP 280/0.9E20.9EGEN2 OSRAM
A56237D00HM P-VIP 280/1.0 CE20.6 OSRAM
A63682200HM P-VIP 280/1.0 CE20.6 OSRAM
A49844502HM P-VIP 280/1.0 E20.6 OSRAM
A54163B00HM P-VIP 280/1.0 E20.68 OSRAM
A56179800HM P-VIP 280/1.0 E20.6D OSRAM
A69699F00HM P-VIP 300 OSRAM
AA3177500HM P-VIP 300/1.0 E20.8 OSRAM
AA3177600HM P-VIP 300/1.0 E20.9N OSRAM
A62919F00HM P-VIP 300/1.3 E21.6A OSRAM
A56950A01HM P-VIP 300/1.3 E21.8A OSRAM
A48253702HM P-VIP 300/1.3 E21.8E OSRAM
AB3314900HM P-VIP 300/1.3 P22.5 CC OSRAM
AA3521600HM P-VIP 300/1.3 P22.5 RC OSRAM
A38450D04HM P-VIP 300/1.3 P22.5 OSRAM
A59185100HM P-VIP 300/1.3 P22.5 OSRAM
A48288303HM P-VIP 300/1.3 P22.5E OSRAM
A60267200HM P-VIP 330/1.0 E20.9 OSRAM
A73537800HM P-VIP 330/1.0 E20.9 OSRAM
A63412D00HM P-VIP 330/1.0 E20.9C OSRAM
A74837000HM P-VIP 330/1.0 E20.9C OSRAM
AA6901800HM P-VIP 330/1.0 E20.9N CUT OSRAM
AA4372500HM P-VIP 330/1.0 E20.9N CUT HP OSRAM
AA6696400HM P-VIP 330/1.0 E20.9N HP OSRAM
AA3529400HM P-VIP 330/1.0 E20.9N OSRAM
AA4312800HM P-V1P 330/1.0 E21.8S OSRAM
AA4150200HM P-VIP 330/1.0 P22.5 OSRAM
A63632F00HM P-VIP 330/1.3 CP22.5A OSRAM
A54182300HM P-VIP 350/1.3 E21.8S OSRAM
A54182301HM P-VIP 350/1.3 E21.8S OSRAM
AA6119300HM P-VIP 370/1.0 CE75H OSRAM
AA5542600HM P-VIP 440/1.2 E20.9N OSRAM
A51851801HM P-VIP HAR EVE 120 S OSRAM
AA6690400HM P-VIP HAR S 400 JST OSRAM
A56403A00HM P-VIP100-120/1.0 E19.8 OSRAM
A47290701HM P-VIP100-120/1.0 E22H OSRAM
A53507301HM P-VIP100-120/1.0 E22HA OSRAM
A39274A03HM P-VIP100-120/1.0 E23H OSRAM

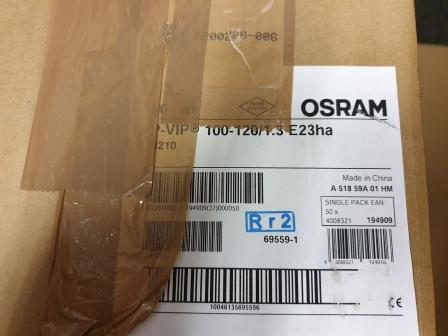

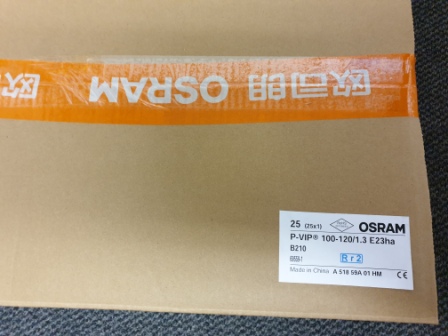

A53505601HM P-VIP100-120/1.0 E23HA OSRAM
A59176100HM P-VIP100-120/1.0 P20 OSRAM
A51862F01HM P-VIP100-120/1.0 P22HA OSRAM
A41687011HM P-VIP100-120/1.3 E23H 120W OSRAM
A51859A01HM P-VIP100-120/1.3 E23HA OSRAM
A54155905HM P-VIP100-120/1.3 P23A OSRAM
A59151100HM P-VIP100-120/1.3 P23H 120W OSRAM
A59149700HM P-VIP100-120/1.4 P23 OSRAM
A48247E01HM P-VIP120-132/1.0 E22H OSRAM
A51863B01HM P-VIP120-132/1.0 P22 HA OSRAM
A47291301HM P-VIP132-150/1.0 E22H OSRAM
A54294D02HM P-VIP132-150/1.0 E22HA OSRAM
A45700103HM P-VIP132-150/1.0 E23 OSRAM
A59439000HM P-VIP132-170/1.0 CE19.5 OSRAM
A53527800HM P-VIP150-180/1.0 E20.6 OSRAM
A47325202HM P-VIP150-180/1.0 E22H E OSRAM
A73211600HM P-VIP150-180/1.0 E22R CF OSRAM
A55506000HM P-VIP150-180/1.0 E22R OSRAM
A72109200HM P-VIP150-180/1.0 E22RA OSRAM
AB3472900HM P-VIP170/1.0 E50 G2 OSRAM
A74760300HM P-VIP170/1.0 E50 OSRAM
AA3907300HM P-VIP170/1.0 E54 OSRAM
A53748600HM P-VIP180-230/1.0 CE20.6 OSRAM
A51872900HM P-VIP180-230/1.0 E19.5 OSRAM
A51872901HM P-VIP180-230/1.0 E19.5 OSRAM
A49490E02HM P-VIP180-230W/1.0 E20.6 OSRAM
AA4197400HM P-VIP200-230/0.9 E20.8 ULL EN OSRAM
AB3258900HM P-VIP200-230/0.9E20.8ULL HB EN OSRAM
AA5918800HM P-VIP215-140/0.8 E20.8 OSRAM
AB3067600HM P-VIP245-310/1.0 E20.9 OSRAM
AA7389900HM P-VIP264-330/1.0 E19.7 OSRAM
AA7519600HM P-VIP300-264/1.3 E21.9 OSRAM
AA7519900HM P-VIP330-264/1.3 E19.9 OSRAM
AA7519800HM P-VIP330-264/1.3 E21.9 OSRAM
AB3740800HM P-VIP330-370/1.0 E20.9N CUT OSRAM
AB3740700HM P-VIP330-370/1.0 E20.9N OSRAM
AB4294100HM P-VIP 200/1.0 E50 GEN2 OSRAM
AB4294000HM P-VIP 230/1.0 E50 GEN2 OSRAM
|
ESPECIFICACIONES: Lámparas para televisión y videowall |
|||||||
| Referencia | Modelo | Potencia (W) |
Horas * | arco (mm) |
Reflector | dimensiones (mm) |
profundidad (mm) |
| OSRAM 69506 | P-VIP 100-120/1.0 E19.8a | 100-120 | 8000 | 1.0 | elíptico | 57x57 | < 63 |
| OSRAM 69546 |
P-VIP 100-120/1.0 P20a |
100-120 | 6000 | 1.0 | parabólico | 50x50 | < 74 |
| OSRAM 69458 | P-VIP 100-120/1.0 P22ha | 100-120 | 8000 | 1.0 | parabólico | 65x70 | < 82 |
| OSRAM 69377 | P-VIP 100-120/1.0 E22h | 100-120 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
| OSRAM 69561 | P-VIP 100-120/1.0 E22ha | 100-120 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
| OSRAM 69559 | P-VIP 100-120/1.3 E23ha | 100-120 | 8000 | 1.3 | elíptico | 95ø | < 88 |
| OSRAM 69560 | P-VIP 100-120/1.0 E23ha | 100-120 | 8000 | 1.0 | elíptico | 95ø | < 88 |
| OSRAM 69570 | P-VIP 100-120/1.3 P23a | 100-120 | 8000 | 1.3 | parabólico | 96ø | < 92 |
| OSRAM 69441 | P-VIP 120-132/1.0 P22ha | 120-132 | 8000 | 1.0 | parabólico | 65x70 | < 82 |
| OSRAM 69534 | P-VIP 120-132/1.0 E22h | 120-132 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
| OSRAM 69490 | P-VIP 132-150/1.0 E22ha | 132-150 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
| OSRAM 69554 | P-VIP 132-150/1.0 E23ha | 132-150 | 8000 | 1.0 | elíptico | 95ø | < 88 |
| OSRAM 69440 | P-VIP 150-180/1.0 E22ha | 150-180 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
| OSRAM 69788 | P-VIP 150-180/1.0 E22ra | 150-180 | 8000 | 1.0 | elíptico | 65x70 | < 85 |
|
ESPECIFICACIONES: Lámparas para proyectores |
|||||||
| Referencia | Modelo | Potencia (W) |
Horas * | arco (mm) |
Reflector | dimensiones (mm) |
profundidad (mm) |
| OSRAM 69803 | P-VIP 132-170/1.0 cE19.5a | 132-170 | 4000 | 1.0 | elíptico | 50x50 | < 65 |
| OSRAM 69149 | P-VIP 150/1.0 E18a | 132-150 | 5000 | 1.0 | elíptico | 44x48 | < 54.5 |
| OSRAM 69574 | P-VIP 165/1.0 E17.6a | 132-165 | 5000 | 1.0 | elíptico | 42x48 | < 66 |
| OSRAM 69066 | P-VIP 170/1.0 E50a | 132-170 | 4000 | 1.0 | elíptico | 50x50 | < 56 |
| OSRAM 69114 | P-VIP 170/1.0 E54a | 132-170 | 3000 | 1.0 | elíptico | 54x54 | < 58 |
| OSRAM 69804 | P-VIP 180/0.8 E20.8a | 160-180 | 6000 | 0.8 | elíptico | 51ø | < 62.5 |
| OSRAM 69851 | P-VIP 180/1.0 E20.6a | 150-180 | 4000 | 1.0 | elíptico | 51x51 | < 59.9 |
| OSRAM 69801 | P-VIP 180-230/1.0 cE19.5a | 180-230 | 3000 | 1.0 | elíptico | 50x50 | < 58 |
| OSRAM 69615 | P-VIP 180-230/1.0 E20.5a | 180-230 | 3000 | 1.0 | elíptico | 51x51 | < 59.9 |
| OSRAM 69081 | P-VIP 190/0.8 E20.8a | 160-190 | 4000 | 0.8 | elíptico | 51ø | < 62.5 |
| OSRAM 69810 | P-VIP 190/1.0 E20.8a | 160-190 | 4000 | 1.0 | elíptico | 51x51 | < 63.5 |
| OSRAM 69802 | P-VIP 200/0.8 E20.8a | 160-200 | 6000 | 0.8 | elíptico | 51ø | < 62.5 |
| OSRAM 69815 | P-VIP 200/1.0 cE19.5a | 160-200 | 2000 | 1.0 | elíptico | 50x50 | < 58 |
| OSRAM 69492 | P-VIP 200/1.0 E17.5a | 160-200 | 3000 | 1.0 | elíptico | 48x43 | < 71 |
| OSRAM 69472 | P-VIP 200/1.0 E19a | 160-200 | 3000 | 1.0 | elíptico | 46x46 | < 56 |
| OSRAM 69789 | P-VIP 200/1.0 E20.6a | 150-200 | 4000 | 1.0 | elíptico | 51x51 | < 59.9 |
| OSRAM 69067 | P-VIP 200/1.0 E50a | 150-200 | 3500 | 1.0 | elíptico | 50x50 | < 56 |
| OSRAM 69115 | P-VIP 200/1.0 E54a | 150-200 | 2500 | 1.0 | elíptico | 54x54 | < 58 |
| OSRAM 69471 | P-VIP 200/1.0 P21.5a | 160-200 | 2000 | 1.0 | parabólico | 56x52 | < 73 |
| OSRAM 69592 | P-VIP 200/1.3 cP22.5a | 160-200 | 3000 | 1.3 | parabólico | 80x80 | < 78 |
| OSRAM 69612 | P-VIP 200/1.3 P22a | 160-200 | 2000 | 1.3 | parabólico | 70x65 | < 75 |
| OSRAM 69616 | P-VIP 200/1.3 E22a | 160-200 | 3000 | 1.3 | elíptico | 73x73 | < 65 |
| OSRAM 69812 | P-VIP 220/1.0 E20.8a | 180-220 | 3000 | 1.0 | elíptico | 51x51 | < 62.5 |
| OSRAM 69793 | P-VIP 230/0.8 E20.8a | 190-230 | 4000 | 0.8 | elíptico | 51ø | < 62.5 |
| OSRAM 69790 | P-VIP 230/1.0 E20.6a | 180-230 | 3000 | 1.0 | elíptico | 51x51 | < 60.8 |
| OSRAM 69083 | P-VIP 230/1.0 E50a | 180-230 | 1500 | 1.0 | elíptico | 50x50 | < 51 |
| OSRAM 69814 | P-VIP 240/0.8 E20.8a | 190-240 | 3500 | 0.8 | elíptico | 51x51 | < 53.6 |
| OSRAM 69112 | P-VIP 245-300/1.1 E21.7a | 245-300 | 2000 | 1.1 | elíptico | 56x56 | < 61 |
| OSRAM 69597 | P-VIP 250/1.3 cE21.5a | 200-250 | 2000 | 1.3 | elíptico | 56x52 | < 70.8 |
| OSRAM 69378 | P-VIP 250/1.3 E21.8a | 200-250 | 3000 | 1.3 | elíptico | 56x56 | < 67 |
| OSRAM 69568 | P-VIP 250/1.3 P22.5a | 200-250 | 2000 | 1.3 | parabólico | 80x80 | < 84 |
| OSRAM 69533 | P-VIP 250/1.3 P22a | 200-250 | 1500 | 1.3 | parabólico | 65x70 | < 77 |
| OSRAM 69611 | P-VIP 260/1.0 E20.6a | 230-260 | 3000 | 1.0 | elíptico | 51x51 | < 64.5 |
| OSRAM 69111 | P-VIP 264-330/1.3 E21.7a | 264-330 | 2000 | 1.3 | elíptico | 56x56 | < 61 |
| OSRAM 69811 | P-VIP 280/0.9 E20.6a | 230-280 | 2000 | 0.9 | elíptico | 51x51 | < 54 |
| OSRAM 69806 | P-VIP 280/0.9 E20.8a | 230-280 | 3000 | 0.9 | elíptico | 51ø | < 64.5 |
| OSRAM 69805 | P-VIP 280/0.9 E20.9a | 230-280 | 3000 | 0.9 | elíptico | 56ø | < 66.7 |
| OSRAM 69080 | P-VIP 280/0.9 E20.9e | 230-280 | 2000 | 0.9 | elíptico | 56ø | < 66.7 |
| OSRAM 69791 | P-VIP 280/1.0 E20.6a | 230-280 | 3000 ** | 1.0 | elíptico | 51x51 | < 64.5 |
| OSRAM 69599 | P-VIP 300/1.3 E21.6a | 250-300 | 3000 | 1.3 | elíptico | 56x52 | < 71 |
| OSRAM 69508 | P-VIP 300/1.3 E21.8a | 250-300 | 3000 | 1.3 | elíptico | 56x56 | < 69 |
| OSRAM 69509 | P-VIP 300/1.3 P22.5a | 250-300 | 2000 | 1.3 | parabólico | 80x80 | < 84 |
| OSRAM 69555 | P-VIP 330/1.0 E20.9a | 280-330 | 2000 | 1.0 | elíptico | 56ø | < 66.7 |
| OSRAM 69594 | P-VIP 330/1.3 cP22.5a | 280-330 | 2000 | 1.3 | parabólico | 80x80 | < 88 |
| OSRAM 69792 | P-VIP 350/1.3 E21.8a | 300-350 | 2000 | 1.3 | elíptico | 56x56 | < 70 |
| OSRAM 69362 | VIP R 200/P22D | 160-200 | 1000 | 1.3 | parabólico | 65x70 | < 72 |
* Horas para potencia mas baja.
** En proyectores BenQ puede ser menor
