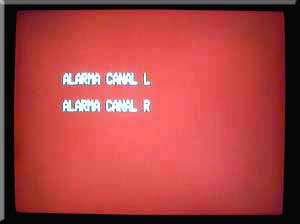

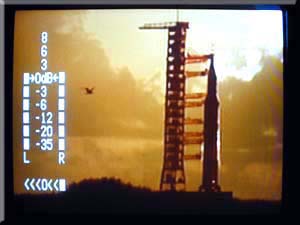

Stereo audio signal display. Phase meter. Independent peak meters. Out of range level indicators. Scale calibrated in dB (-35 a +8). Low level and out of phase visual alarms. 0 dB gain selectable. Vertical level scale and horizontal phase meter. Blue background in video signal fail. Selectable position on the screen. Five selectable character for signal identification purposes. Chaining inserters capability. 19" (3U) mainframe size. Up to 16 inserters by mainframe.



OSAL-PH IS A SUITABLE SOLUTIONN for broadcast TV centers and any other application in which the monitoring of several video and audio signals is needed, soundlessly.

OSAL-PH IS A PRACTICAL SOLUTION because it allowes the verification, on a single equipment (video monitor) and at a glance, the video and audio signals simultaneously.

OSAL-PH IS A LOW COST SOLUTION because it saves space against another choices and it has a low cost, too.

FEATURES AND ESPECIFICATIONS (HTML)

BROCHURE

MIT Comunicaciones, S.L.
Alcaudón, 11
28019 MADRID (SPAIN)


Tel: +34 91 471 84 42


E-mail: mit@mit-com.com

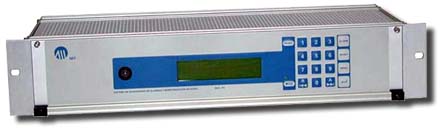

• Two basic functions:
  • Simultaneous supervision on all channels with warning fails indication.
  • Any channel selection for its monitoring.
• From 4 up to 256 audio signals.
• System configuration:
  • 1 to 8 Measurement mainframes (32 signals each), close to the audio sources.
  • 1 Control panel, in the Control room.
• Up to 300 m. between them.
• Autonomous (no full-time PC required).
• Acoustic and visual alarms indication.
• PC connectable (RS232 serial port).
• Programmable parameters:
  • Mono/stereo channel for monitoring.
  • Characters for channel identification purposes.
  • Alarm condition level.
  • Timed alarm trigger.
  • Alarms inhibition.
  • Monitoring channel.
• Remote alarm relays, optional.



SAA-PC IS A SUITABLE SOLUTION for broadcast radio or TV center or any other application in which the simultaneous control of different audio signals is needed.

SAA-PC IS A PRACTICAL SOLUTION so it allowes to find out defaults and fix them easely.

SAA-PC IS A LOW COST SOLUTION because it saves wiring installation cost against other choices and at a reasonable price.

FEATURES AND ESPECIFICATIONS (HTML)

BROCHURE

MIT Comunicaciones, S.L.
Alcaudón, 11
28019 MADRID (SPAIN)


Tel: +34 91 471 84 42


E-mail: mit@mit-com.com

• Up to 5 radio stations supervision simultaneously.
• Digital tuning for each radio station.
• Four programmable parameters:
  • Minimun level for alarm.
  • Timed low level alarm trigger.
  • Timed stereo pilot tone alarm trigger.
  • Alarms inhibition.
• Four alarms by radio station:
  • Low level on the right channel.
  • Low level on the left channel.
  • Stereo pilot tone fail.
  • Out of phase channels.
• Power fail alarm.
• Relay contact (solid state) by alarm to be connected to a teletransmission system or visual panel.
• Relay contact (solid state) by general alarm.
• Audible monitoring of each radio station.
• Audio output available on each tuner.
• Housed in a 19" (3U) cabinet.

SFM IS A SUITABLE SOLUTION for remote FM transmitter centers.

SFM IS A PRACTICAL SOLUTION so it allowes to find out defaults and fix them easely.

SFM IS A LOW COST SOLUTION because it has a reasonable price and a minimun installation cost.

FEATURES AND ESPECIFICATIONS (HTML)

BROCHURE

MIT Comunicaciones, S.L.
Alcaudón, 11
28019 MADRID (SPAIN)


Tel: +34 91 471 84 42







mit@mit-com.com

MIT Comunicaciones comes up in 1.992 with the idea of designe and manufacture electronic systems and equipments to meet specific customer needs, mainly, among the Telecommunications area.

Since then, the company policy is to work together with our clients to get designs totally adapted to their needs, achieving too a compact, reliable, and inexpensive end product.

Therefore, our broadcast products meet the requirements and specifications stablished by the main clients in Spain, like Retevision and Telefonica, also they have many improvements which have been implemented thanks to our expert customer suggestions.

In MIT Comunicaciones, we work to meet an target:

THE COMPLETE SATISFACTION OF OUR CLIENTS.
